Peel Tester - Ziegler FTM Multi

FTM Multi

6-fold tensile tester With 6 individually vertically moveable force transducers

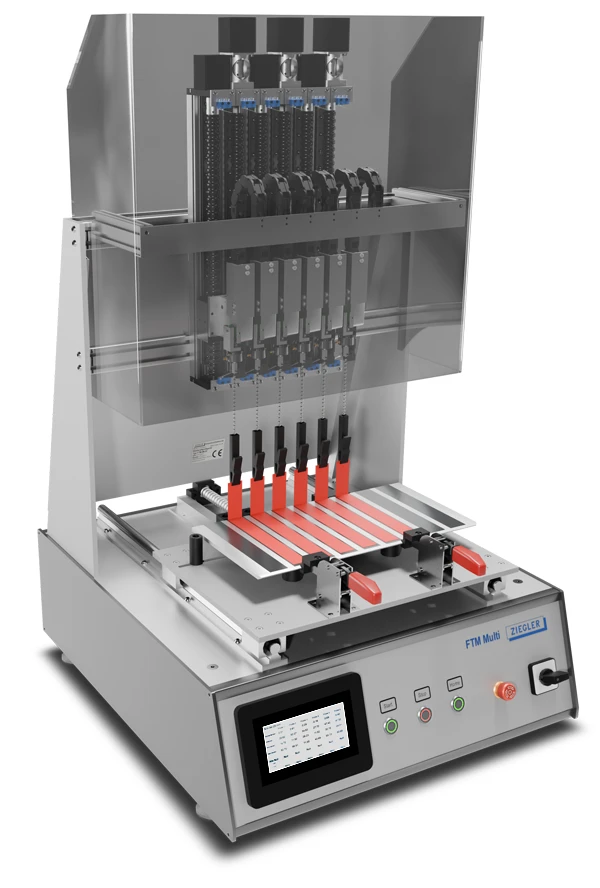

The ZIEGLER FTM Multi adhesive peel tester is a 6-way tensile tester. The test device has 6 individually vertically movable force transducers and a work table. The work table can be moved manually so that either pull-off tests or loop tack measurements can be carried out. Due to the special arrangement on the tensile tester, the samples can be pulled at a vertical angle of 180° and at speeds of 300 mm/min and 10 m/min.

Components (selection):

  • Precision drives that precisely maintain speeds.
  • Touchscreen display for notifications and settings, evaluation of actual value, minimum value, maximum value
    and mean value in N or cN

    • Applications of the device:

  • When processing and finishing adhesives, composite materials, self-adhesive materials and release agents
  • Production monitoring and quality control
  • Sustainability certificates of storage
  • Outgoing goods inspection by the manufacturer
  • Incoming goods inspection by the finisher
  • Outgoing goods inspection by the finisher
  • Incoming goods inspection by the user
  • Trials of Friction

    • Scope of delivery:

  • Adhesive force tester ZIEGLER FTM Multi
  • Power cord
  • USB cable
  • FTMULTI software compatible with Windows® 10-11
  • Manual

    • Supported Test Methods (Selection):

  • FINAT* FTM 1 – Peel Adhesion (180°) At 300mm Per Minute
    In accordance with FINAT* specifications, this measurement method measures the release force that is required to remove a self-adhesive material that has been stuck to a standard test panel under previously defined conditions with a peel angle of 180° and peeled off at speeds of 10-1000 mm/min.
  • FINAT* FTM 2 – Peel Adhesion (90°) At 300mm Per Minute
    In accordance with the FINAT* specifications, this measurement method measures the release force that is required to remove a self-adhesive material that has been stuck to a standard test panel under previously defined conditions with a specific peel angle of 90° and a speed of 300mm/min. The first measurement is made 20 minutes after sticking. A second measurement is taken 24 hours after sticking. The last measurement is recorded as the final adhesion.
  • FINAT* FTM 3 – Low Speed Release Force
    In accordance with the FINAT* specifications, this measurement method measures the release force that is necessary to remove a material with a self-adhesive layer from its release paper (or vice versa) at a 180° angle and a peel speed of 300 mm/min.
  • ZIEGLER FTM Multi supports many other test methods...

    • Depiction of HS-300

    Software FTMULTI:

    The FTMULTI software is used for data acquisition, analysis, logging, and data storage. Measurements from the tensile testing machine can be automated securely and conveniently. The clear and intuitively designed user interface minimizes the time required for training.

    FTMULTI Data Acquisition

    Technical Data
    Peel speed: 10-1000 mm/min
    Operating voltage: A.C. 100 - 240 V / 50 - 60 Hz
    Max. power consumption: max. 250 VA
    Fuse: 2 x 4 AT
    Dimensions: H 1060 x D 720 x W 610 mm
    Weight: 60 kg


    * Fédération internationale des fabricants et transformateurs d'adhésifs et thermocollants sur papiers et autres supports.
